How to install external antennas on MB110-4G

NOTE： Make sure you have installed two external antennas to ensure that MB110-4G 's LTE network works properly.

When working in 3G/4G Router mode, you can install two external antennas (not included in the product package) manually to strengthen the LTE network.



Before You Start

• Ensure your antennas support the working frequency and band.

Model	Band
MB110-4G(EU) V2	FDD-LTE: B1/B3/B5/B7/B8/B20/B28 TDD-LTE: B38/B40 3G: B1/B5/B8
MB110-4G(UN) V2	FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD-LTE: B40 3G: B1/B2/B4/B5/B8

Note: MB110-4G V1 doesn’t support External Antennas.



• Ensure your antennas connector type is correct: SMA Male



Follow the steps below to install your external antennas:

1. Open the back cover.

2. Connect your 2 external antennas.

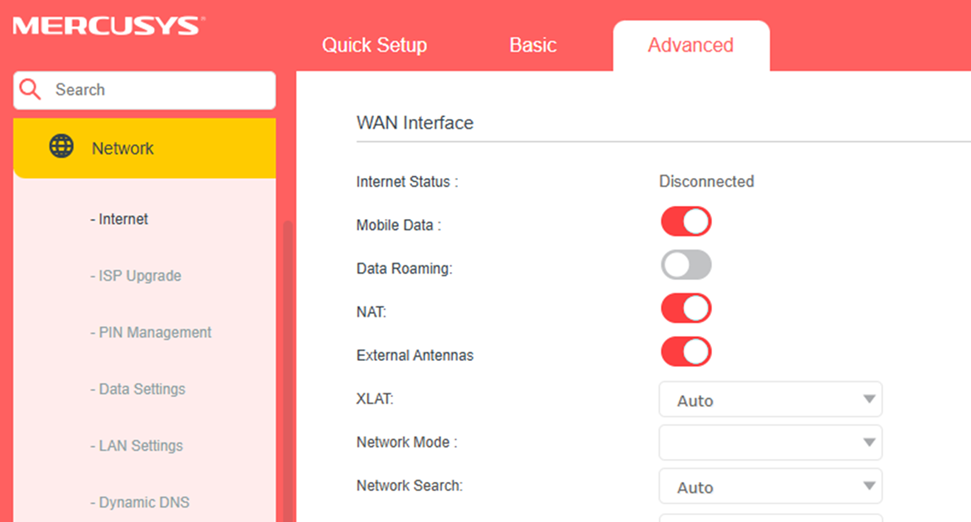

3. Log in to the web page (http://mwlogin.net), then go to Advanced > Network > Internet, enable External Antennas.



Get to know more details of each function and configuration please go to Support Center to download the manual of your product.
